Ontek IoT - Monitor & Control
Ontek IoT is an aggregate collection of micro computers that collects data from various devices in the field and stores in a central Server, which may be deployed locally or in the cloud or even your existing ERP. Data can be transmitted to the server on local LAN, wifi or through a gsm gateway. An intelligent layer built in the system to monitor this data and take action based on defiend workflows. Supervision and Escalation based on a defined matrix as per SLA is an integral part of Ontek IoT making sure the stake holders are always in the loop for the goings on in their system. Escalation messages can be done using both email and sms gateway. The system may be used for various purposes including but not limited to Building Management, Scada, Pollution Monitoring, Smart Cities and Smart Management. It can be customised into just about any application that works on field data.
1. Single unified platform, 2. Real time data analysis, 3. Real time support to people Immune to losses due to delay or manipulated data reporting, 4. Macro management, 5. Intelligent evaluation across specialized data sources, 6. Aggregated risk management
Scalable
Ontek IoT supports an increasing number of connected devices, users, application features, and analytics capabilities, without any degradation in the quality of service.
Proven Technology
Ontek IoT works on time tested, mature technology and hardware that meets IT strategy, business needs and project risks.
Intuitive Design
Ontek IoT is so easy to use that no special training is required. The UI is very simple and self explanatory. The management is exactly as what a user expects of it.
Monitor
Ontek IoT, althogh has a dedicated management station, can be monitored from any device (laptop, Tablet, Mobile) in the network. Know the status of your system in the palm of your hand 24 X 7.
Control
Ontek IoT uses automated processes based on work flows to control devices. Manual override is also provided for control on the fly.
Report
Ontek IoT provides visualization of data in graphical format. Export data in csv or pdf format or schedule automated reports that can be emailed to respective stake holders.

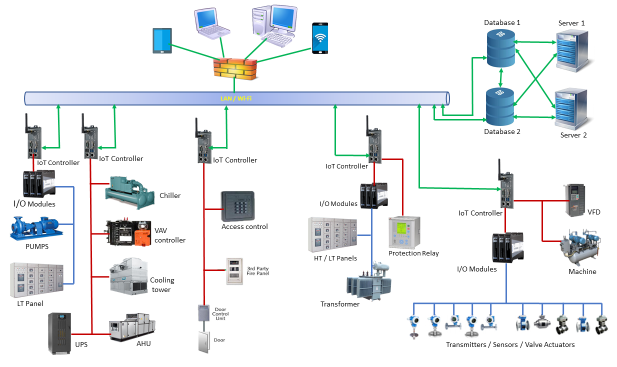

Architecture

Ontek IoT has a simple architecture wherein, the Ontek IoT controllers communicate with various machines, devices, PLCs, Control Panels, and other smart devices using Modbus protocol or Bacnet gateway and push that data to a central server. Ther are two servers for redundency and two controllers for link load balancing. The user can access these servers usinga virtual IP address. Database in both servers are synced together to minimise dataloss due to failure of primary server. Ontek IoT controllers push data to the primary server. they are designed so that they push data to the secondary server incase the primary server fails. The servers can be set up either locally, behind a firewall, or on the cloud. Ontek IoT has a monitoring and control station which is used to operate the application layer. However, the application layer can be accessed from anywhere in the network or through vpn outside the network from any laptop. The application access is compartmentalised based on user authorization. The application is easy to use and reports can be viewed and downloaded in csv or pdf format for later use. Ontek IoT uses an escalation model based on SLA to escalate faults and other configured flags to various stake holders. For more information feel free to contact us: +91 90290 51415 or write to us: enquiry@klatecworld.com
